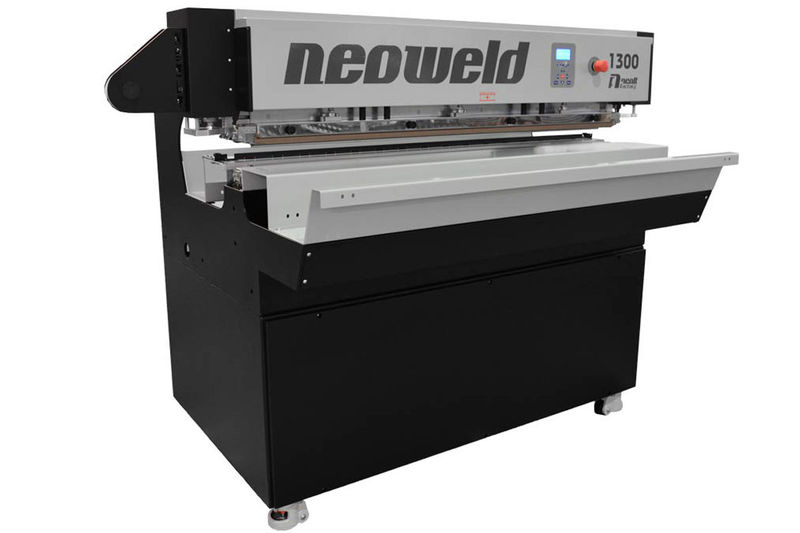

Neolt Neoweld 130/165/260 Vinyl Banner Welding Machine

Weld banners seamlessly & in a very short time, with low operating &
maintenance costs, reduced energy consumption with Neolt Pulse Welding technology.

NeoWeld Pulse Welding Series in 1.3mtr, 1.6mtr or 2.3mtr are designed to meet the production needs of sign-makers and professionals in the digital printing, indoor/outdoor advertising and POS communication markets. Offering strong finishing the Neoweld is suitable both for welding hem pockets and for joining pieces of substrate.

Neoweld pulse technology is a substantial alternative to high-frequency, ultrasonic or hot air technologies, offering a number of indisputable advantages from the technical, operational, economical and dimensional point of view.

Thanks to Neoweld is possible to weld seamlessly in a very short time, with very low operating and maintenance costs, reduced energy consumption
and ease of use even for inexperienced operators.

Soft Signage & Fabrics

The placement of PVC tape between the edges to be welded broadens the application to polyester fabrics for soft-signage applications.

Key Features

Neolt NeoWeld series is equipped with a teflon coated welding element 1300 mm long (model 130), 1650 mm (model 165) or 2600 mm (model 260) featuring a range of temperatures from 70 to 250 °C with a working pressure of 220 Kg/cm.

The operating cycle, both for the welding and cooling, is adjustable by the operator in up to 5 minutes. The control panel allows you to set, save and recall up to 20 welding programs, significantly reducing setup times and job change.

OPTIONS / ACCESSORIES

Side extensions to broaden the backing area (1 meter on each side)
Dual laser tracker
FAP kit for the automatic creation of the pocket
Silent Air Compressor (9 liters, 8 bar / 116psi)
