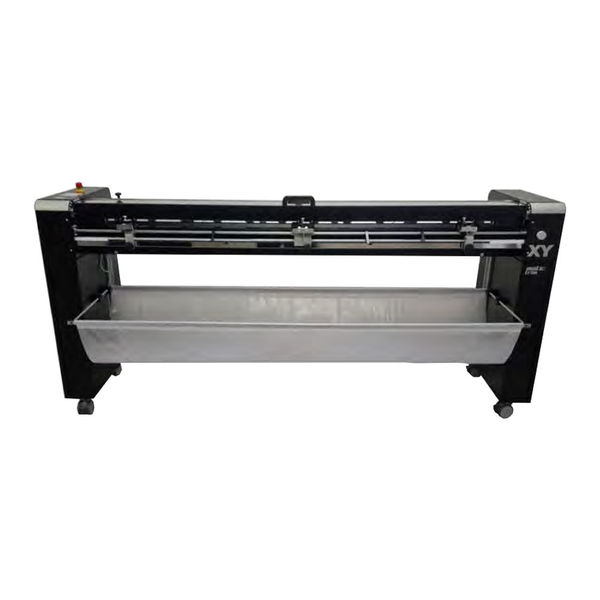

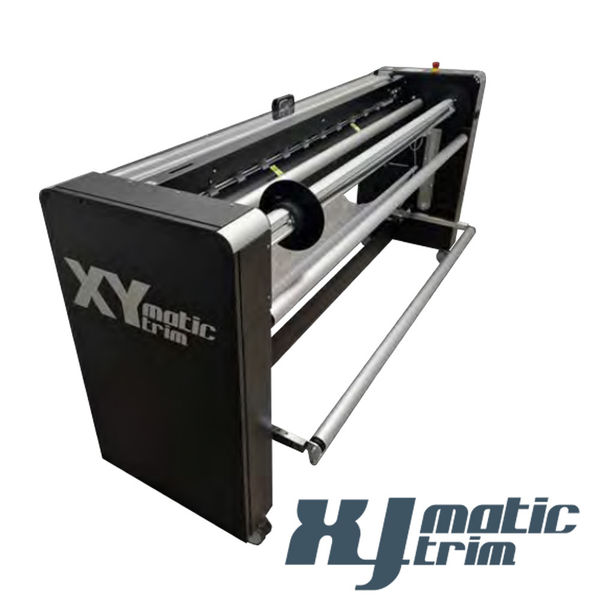

Neolt XY Matic Trim 165cm Automatic Cutter (Q896)

The Neolt XY Matic Trim Automatic Cutter (Q896) is a fully automated, high-precision cutter for professional print finishing. It features optical alignment, adjustable speeds and a user-friendly interface, ensuring accurate, efficient trimming for various materials.

Fully automated cutter with optical alignment, adjustable speeds, precise XY trimming and a user-friendly interface for professional print finishing.

High-precision, fully automated cutting system designed to enhance efficiency in professional print finishing. This advanced XY cutter provides accurate trimming on all four sides of various flexible materials, making it ideal for industries requiring high-speed, high-quality cutting solutions.

Equipped with a mobile optical sensor this cutter accurately detects and follows cutting marks, guaranteeing perfect alignment for both horizontal and vertical cuts. This feature significantly reduces material waste and enhances productivity, making it suitable for large-scale production environments. The cutter’s adjustable speed settings allow users to tailor the cutting process to different media, ensuring optimal performance across a wide range of materials.

The machine features an intuitive electronic control system, enabling operators to monitor and adjust settings effortlessly. With its robust yet user-friendly design, it streamlines workflow and reduces downtime, ensuring a seamless cutting experience. Optional add-ons, such as additional vertical cutting units and an inclined output table, further expand the machine’s capabilities, allowing for greater flexibility in production.

The Neolt XY Matic Trim is compatible with various materials, including photographic papers, vinyl, inkjet printing paper, polyester and polycarbonate films. Its advanced automation and precision-engineered components make it an essential tool for businesses requiring consistent, high-speed cutting with superior edge quality. Whether used for signage, display graphics or printed media finishing, this cutter delivers professional-grade results with maximum efficiency.

MAIN FEATURES:

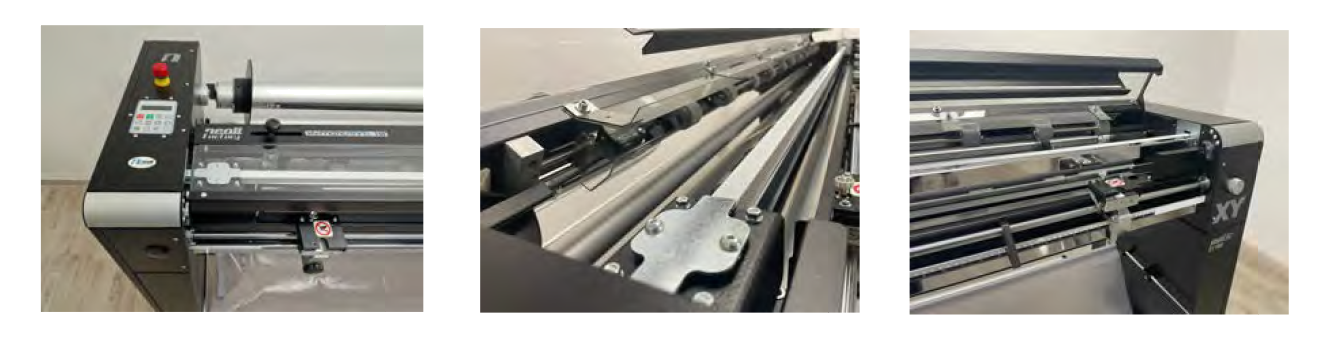

• Equipped with multiple cutting units for simultaneous cut on all four sides
• A mobile optical sensor reads cut marks to automate
• Manual alignment of the prints to be cut in the longitudinal direction, while the vertical cutting units are set manually
• Speed 500 linear m/h
• Available for a wide range of materials, including photo papers, vinyl, inkjet printing paper, polyester or polycarbonate films up to a thickness of 0.5mm
• Easy loading of rolls
• Electronic controls with display allow the operator to easily check any errors or malfunctions
• Vertical self-sharpening blade
• Horizontal self-sharpening blade

SUITABLE MATERIALS:

• Wallpaper Paper (laminated or encapsulated)
• Canvas & polyester (with lining)
• Reflective material
• PVC Banner
• (Adhesive) Vinyl and vinyl
• Backlit and front-facing display
• Magnetic Rubber
• Polycarbonate film

SPECIFICATIONS:

• Maximum cutting width: 1650 mm
• Dimensions: 165 > 2160 x 800 x 1110mm; 165 on line kit > 1650 x 1940 x 350mm
• Weight: 165 > 95kg; 165 Kit on line > 36kg
• Power consumption: 0.5 A

HORIZONTAL CUT:

• Maximum thickness: 1mm
• Speed: 40m/min (131.24 ft/min.)
• Tolerance: ± 1mm. to the mt

VERTICAL CUT:

• Maximum thickness: 0.5mm
• Speed: 12.5m/min (41.01 ft/min.)
• Tolerance: /

ROLL:

• Roll Max. roll diameter: Ø 300 mm
• Max. Roll Width: 1650 mm
• Max. roll weight: 60 kg
• Power consumption: 0.5 A
